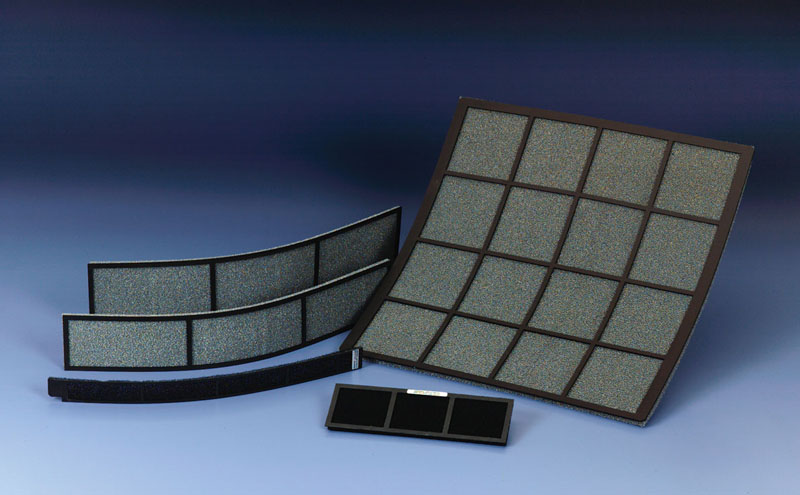

Flex-Frame Air Filters

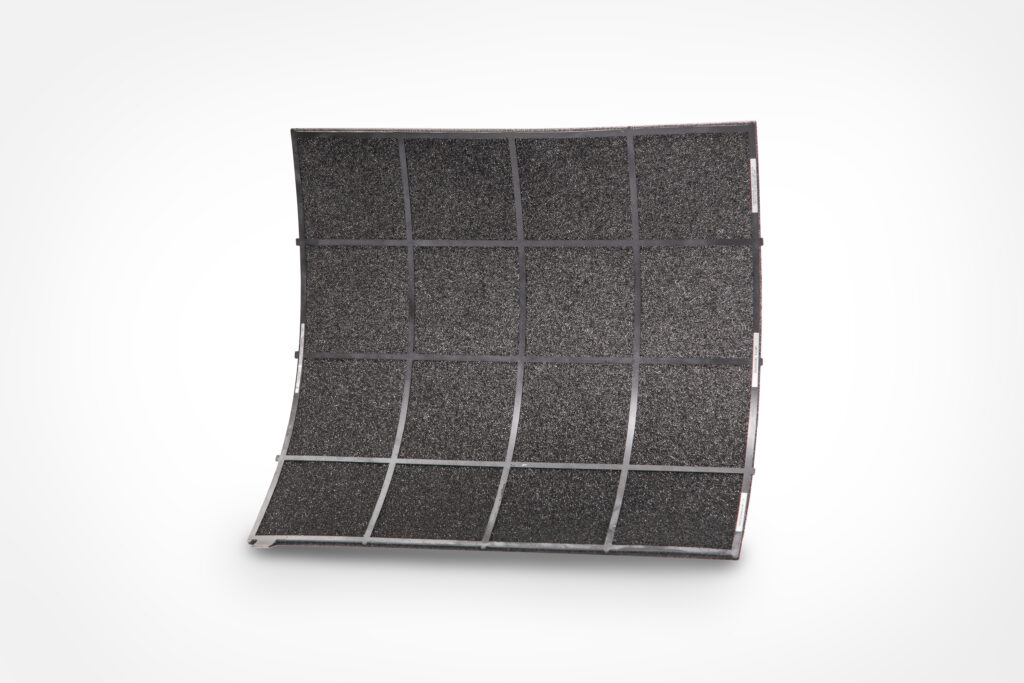

Electronics enclosure designers are challenged by ever-shrinking footprints that force them to be creative in their thermal management solutions. Flex-Frame filters are ideal for telecom, medical, power gen, military/defense, and many other industrial and commercial products.  Flex-Frame air filters are a perfect solution for use in air filter applications that require the filter to “snake” around jutting components or conform to a radius-type bezel. The Flex-Frame is designed for electronics equipment that cannot accept a rigid air filter frame because of internal chassis obstructions or the necessity to follow a curved track.  Order an air filter prototype for your application today.

Flex-Frame Filters +/-.03″ length & width, +/-.06″ thickness

Flex-Frame filters are available with Quadrafoam filter media in various pore sizes (10 through 80PPI Gray or Black), and various thicknesses (.13 to 1.00 inches). Frame thicknesses range from .03 to .125 inches. A solvent-resistant, two-part epoxy bonding material is used to securely unite frame and filter media making them inseparable.

Cleanable black or gray Quadrafoam™ is specified for Flex-Frame air filters. Quadrafoam™ is an open cell polyurethane foam specially coated to meet UL 94 HF-1. It features deep loading, high dust holding capacity and low air resistance.

UL 900

UL 94 HF-1

Telcordia NEBS GR-63-CORE

NEMA

IP

MIL-STD

RoHS

REACH

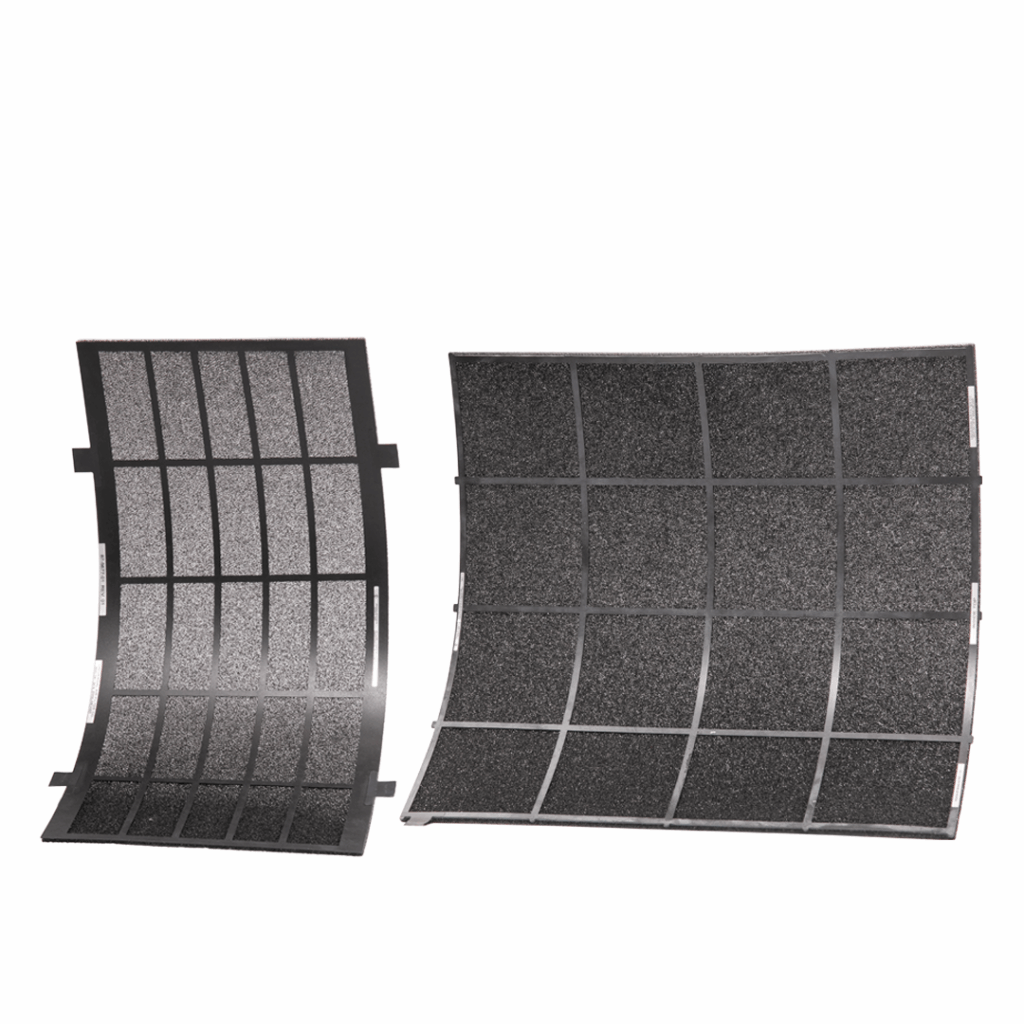

Black polypropylene is rated UL 94V-0. Frames are manufactured using an innovative “frame-n-pane” design that integrates the frame and a series of crossing, reinforcing intermediates that provide media support. Pane sizes and frame thickness are customized to the equipment’s needs.

Electronics enclosure designers are challenged by ever-shrinking footprints that force them to be creative in their thermal management solutions. Flex-Frame filters are ideal for use in air filter applications that require the filter to “snake” around jutting components or conform to a radius-type bezel. The Flex-Frame is designed for electronics equipment that cannot accept a rigid air filter frame because of internal chassis obstructions or the necessity to follow a curved track.  Order an air filter prototype for your application today.

Flex-Frame Filters +/-.03″ length & width, +/-.06″ thickness

Flex-Frame filters are available with Quadrafoam filter media in various pore sizes (20 through 45 PPI Green and 10 through 80PPI Gray or Black), and various thicknesses (.13 to 1.00 inches). Frame thicknesses range from .03 to .125 inches. A solvent-resistant, two-part epoxy bonding material is used to securely unite frame and filter media making them inseparable.
