Polyfold Air Filters
High dust holding, industrial strength filters

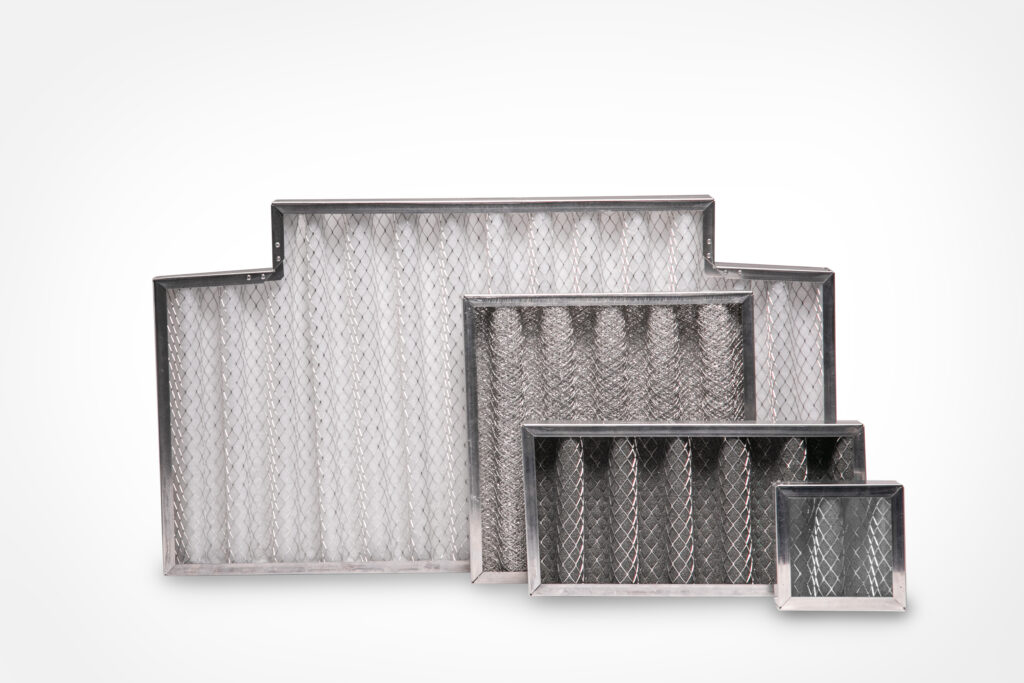

Polyfold industrial air filters are excellent for general purpose filtration where high dust-holding capacity and low resistance are important. Uni-Foam and Quadrafoam™ media are used for cleanable and reusable filter applications. Polyester media is used in disposable filter applications.
More Information
Polyfold Air Filters
Each model is excellent for general purpose filtration in commercial and industrial applications where low resistance and high dust holding capacity are most important. Order an air filter prototype for your application today.
Framed Filters +/-.06″ length & width, +/-.03″ thickness
Quadrafoam™ filter media is available in all frame models in various pore sizes (10 through 80 PPI Gray and Black).
Quadrafoam II™ filter media is available in all frame models in various pore sizes (10 through 45 PPI Gray and Black).
Unifoam filter media is available in all frame models in various pore sizes (10 through 80 PPI Black).
Polyester media is available in all frame models in various thickness configurations UFM-50 (0.50″) and UFM-100 (1.0″).
Metal Mesh media consists of layers of aluminum slit and expanded into 0.25″ thickness. Single or multiple media layers can be used depending on the level of air flow and filtration required for the application.
Uni-Foam and Quadrafoam™ media are used for permanent type cleanable filter applications, polyester media is used when a disposable filter is most appropriate, metal mesh media is used for low/coarse efficiency applications where a permanent type cleanable filter is desired. After the media and the Uni-Grid support are bonded into one unit, they are mechanically formed into gently rolling pleats, with no areas of tension and minimum distortion. This produces an even flow of air throughout the entire extended area of the filter. Results are lower air flow resistance and a much greater dust holding capacity.
Polyester Media Thickness
Frame
Thickness3D CAD Models
PF-2525.25 (25ppi)
1.88Create & Download
PF-2550.50 (25ppi)
1.88Create & Download
PF-4525.25 (45ppi)
1.88Create & Download
PF-4550.50 (45ppi)
1.88Create & Download
PFPE-50
.501.88Create & Download
PFPE-100
1.001.88Create & Download
UL 900
UL 94 HF-1
Telcordia NEBS GR-63-CORE
FMVSS 302
NEMA
IP
RoHS
REACH
Roll formed into a strong sturdy one-piece channel using 3000 series aluminum. Frame is tightly fitted to filter media and fastened with two aluminum rivets. The UL Classification, model number and air flow direction are roll imprinted into the frame. Part number is metal stamped into frame for quick, accurate identification.

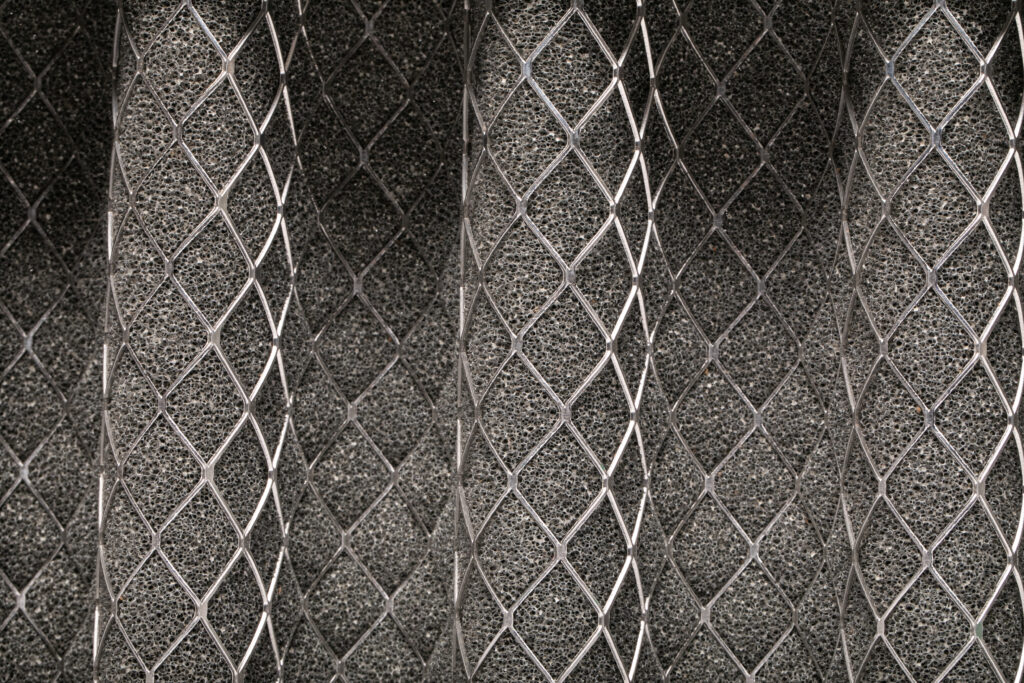

Expanded on our specially designed Uni-Grid equipment, using .040″ thick, 3000 series aluminum. Uni-Grid expanded aluminum is supports air filter media and is approximately 85% open for lower air flow resistance.
Filtration Performance Data:
Quadrafoam
| Quadrafoam™ Models: PF-1025, PF-2525, PF-4525, PF-6025 | ||
| Size | Initial Resistance* (Pascals) |
Average Synthetic Dust Weight Arrestance(%) |
| 10 PPI | 0.01 (2,49) | 38 |
| 25 PPI | 0.04 (9,95) | 66 |
| 45 PPI | 0.05 (12,44) | 80 |
| 60 PPI | 0.10 (24,87) | 82 |
| *in inches water gauge
Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity. |
||
| Quadrafoam Models: PF-1050, PF-2550, PF-4550, PF-6050 | ||
| Size | Initial Resistance* (Pascals) |
Average Synthetic Dust Weight Arrestance(%) |
| 10 PPI | 0.03 (7,46) | 63 |
| 25 PPI | 0.07 (17,41) | 83 |
| 45 PPI | 0.12 (29,84) | 91 |
| 60 PPI | 0.25 (62,16) | 91 |
| *in inches water gauge
Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity. |
||
| Quadrafoam Models: PF-1012, PF-2512, PF-4512, PF-6012 | ||
| Size | Initial Resistance* (Pascals) |
Average Synthetic Dust Weight Arrestance(%) |
| 45 PPI | 0.03 (7,46) | 65 |
| 80 PPI | 0.10 (24,87) | 81 |
| *in inches water gauge
Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity. |
||
Quadrafoam II
| Quadrafoam II™ Models: PF-1025, PF-2525, PF-4525, PF-6025 | ||
| Size | Initial Resistance* (Pascals) |
Average Synthetic Dust Weight Arrestance(%) |
| 10 PPI | 0.01 (2,49) | 38 |
| 30 PPI | 0.04 (9,95) | 66 |
| 45 PPI | 0.05 (12,44) | 80 |
| *in inches water gauge
Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity. |
||
| Quadrafoam II Models: PF-1050, PF-2550, PF-4550, PF-6050 | ||
| Size | Initial Resistance* (Pascals) |
Average Synthetic Dust Weight Arrestance(%) |
| 10 PPI | 0.03 (7,46) | 63 |
| 30 PPI | 0.07 (17,41) | 83 |
| 45 PPI | 0.12 (29,84) | 91 |
| *in inches water gauge
Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity. |
||
| Quadrafoam II Models: PF-1012, PF-2512, PF-4512, PF-6012 | ||
| Size | Initial Resistance* (Pascals) |
Average Synthetic Dust Weight Arrestance(%) |
| 45 PPI | 0.03 (7,46) | 65 |
| 80 PPI | 0.10 (24,87) | 81 |
| *in inches water gauge
Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity. |
||
Polyester
| Polyester Models: PFPE-50 UFM-50 / UPR | ||
| Size | Initial Resistance* (Pascals) |
Average Synthetic Dust Weight Arrestance(%) |
| UFM-50 | 0.09 (22,38) | 88 |
| *in inches water gauge
Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity. |
||
| Polyester Models: PFPE-100 UFM-100 | ||
| Size | Initial Resistance* (Pascals) |
Average Synthetic Dust Weight Arrestance(%) |
| UFM-100 | 0.12 (29,84) | 89 |
| *in inches water gauge
Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity. |
||
Uni-Foam
| Uni-Foam Models: PF-1025, PF-2525, PF-4525, PF-6025 | ||
| Size | Initial Resistance* (Pascals) |
Average Synthetic Dust Weight Arrestance(%) |
| 10 PPI | 0.01 (2,49) | 38 |
| 25 PPI | 0.04 (9,95) | 66 |
| 45 PPI | 0.05 (12,44) | 80 |
| 60 PPI | 0.10 (24,87) | 82 |
| *in inches water gauge
Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity. |
||
| Uni-Foam Models: PF-1050, PF-2550, PF-4550, PF-6050 | ||
| Size | Initial Resistance* (Pascals) |
Average Synthetic Dust Weight Arrestance(%) |
| 10 PPI | 0.03 (7,46) | 63 |
| 25 PPI | 0.07 (17,41) | 83 |
| 45 PPI | 0.12 (29,84) | 91 |
| 60 PPI | 0.25 (62,16) | 91 |
| *in inches water gauge
Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity. |
||
| Uni-Foam Models: PF-1012, PF-2512, PF-4512, PF-6012 | ||
| Size | Initial Resistance* (Pascals) |
Average Synthetic Dust Weight Arrestance(%) |
| 45 PPI | 0.03 (7,46) | 65 |
| 80 PPI | 0.10 (24,87) | 81 |
| *in inches water gauge
Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity. |
||
Metal Mesh
| Metal Mesh Models: PFME-25 | |
| Initial Resistance* (Pascals) |
Average Synthetic Dust Weight Arrestance(%) |
| 0.07 (17,41) | 46 |
| *in inches water gauge
Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity. |
|
| Metal Mesh Models: PFME-50 | |
| Initial Resistance* (Pascals) |
Average Synthetic Dust Weight Arrestance(%) |
| 0.14 (34,82) | 62 |
| *in inches water gauge
Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity. |
|
