FaraVent™ EMI Vent Panels

Superior Shielding and Filtration Performance

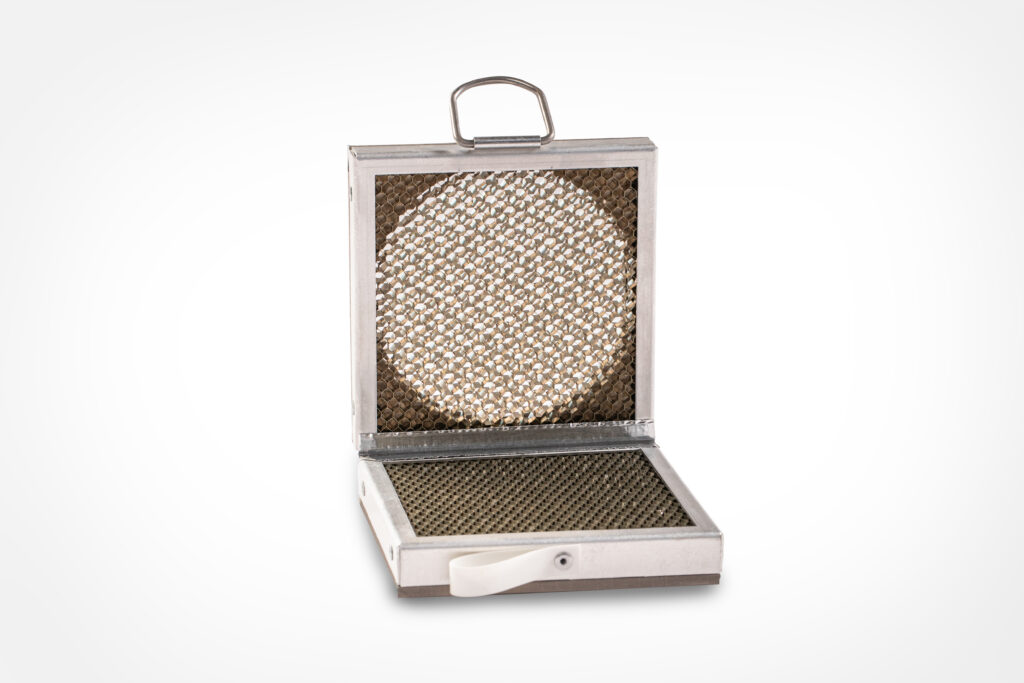

The new FaraVent™ Honeycomb product provides superior shielding against electromagnetic interference and is specially designed for electronics, telecom, EV charging and military electronics equipment. The FaraVent™ Duoproduct pairs our highly effective EMI shielding media with Quadrafoam™ foam for protection from electromagnetic interference along with air filtration technology.

FaraVent™ Honeycomb Filters perform these distinct functions:

EMI/RFI shielding of 30-80 dB from 100 MHz to 40 GHz
Air straightening for maximum cooling efficiency.
When paired with Quadrafoam™ filter media, the product achieves high dust arrestance with low pressure drop.

The FaraVent™ EMI filter reduces EMI/RFI noise by using a honeycomb structure which provides “cells” that are designed to deflect and absorb EMI noise. The honeycomb pattern maintains minimal airflow impedance, and provides a “straightening” effect for even air distribution. In addition, an EMI shielding gasket is installed around the frame perimeter. The gasket ensures full conductivity of the frame to the equipment. Moreover, the filter is available with an EMI shielding stainless steel mesh for further EMI/RFI attenuation.

Download Tech Bulletin

The FaraVent™ Honeycomb Filters also offer these benefits:

Performance specifications that meet the requirements of CE, Telcordia NEBS and UL.
Flame-retardant, open-cell polyurethane foam filter media for high dust arrestance.
Removable, cleanable and reusable.

Download Tech Bulletin

Contact a Specialist

See All 3D CAD Models

Product	Use Cases
FaraVent	General EMI Shielding
FaraVent OS	Maximum EMI shielding for demanding applications
FaraVent Duo	EMI shielding with integrated air filtration

FaraVent™ and FaraVent™ OS

The FaraVent™ product offers superior shielding of 30-80dB from 100mhz to 40ghz.

	FaraVent Shielding Effectiveness
Frequency	¼” FaraVent	¼” FaraVent OS	½” FaraVent	½” FaraVent OS
100 MHz	59 dB	70 dB	55 dB	75 dB
1 GHz	56 dB	58 dB	53 dB	63 dB
10 GHz	47 dB	59 dB	41 dB	48 dB
26 GHz	45 dB	54 dB	51 dB	55 dB
40 GHz	46 dB	35 dB	57 dB	60 dB

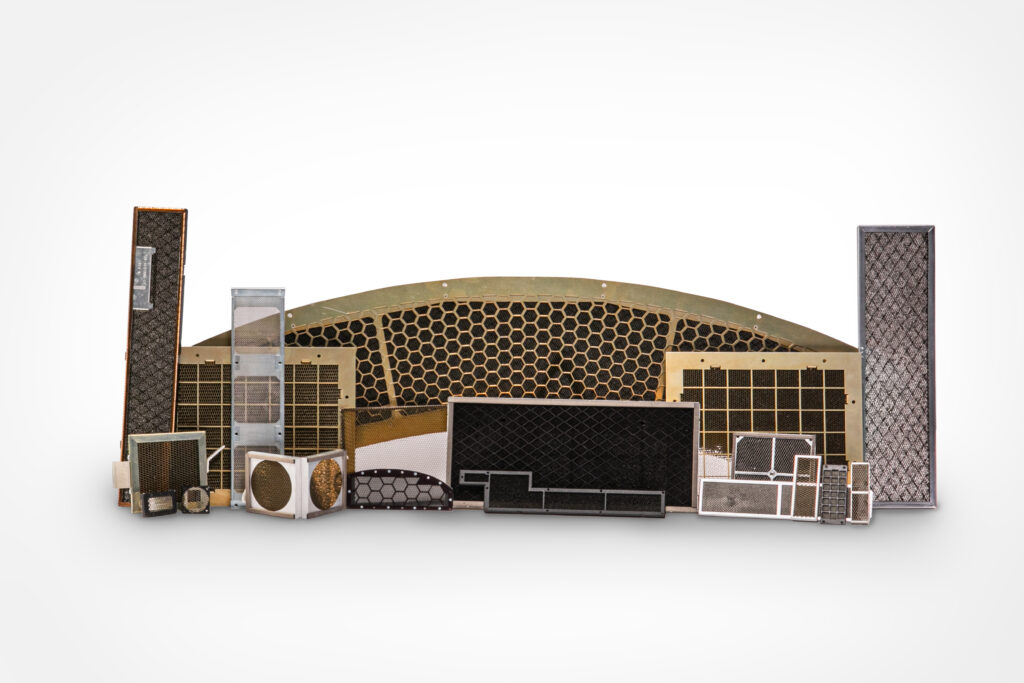

FaraVent™ EMI vent panels are ideal for telecom, medical, power gen, military/defense, EV charging, and many other industrial and commercial products where EMI protection is required. The FaraVent EMI vent panels are designed for electronics, telecom or datacom equipment where EMI/RFI interference could result in equipment malfunction. FaraVent ™ EMI vent panels are custom designed for each application. Request a prototype for your application today.

Framed Filters +/-.06″ length & width, +/-.03″ thickness

Pad Filters +/-.12″ length & width, +/-.06″ thickness

Aluminum honeycomb is offered in a standard 0.125″ cell diameter with thicknesses of 0.125″, 0.25″, and 0.50″. Available in straight (90º) and 45º angled honeycomb configurations.

Model	Quadrafoam Media Thickness	Frame Thickness	Frame Face Flange Width (REF)
FF-3	.25	.30	.25 or .50
FF-5	.25 or .375	.43	.375
FF-5X	.375 or .50	.50	.25 or .50
FF-1025-B	.25	.88	.625
FF-1050-B	.50	.88	.625

Standards & Classifications

IEE 299.2006

UL 94 HF-1

UL 900

Telcordia NEBS GR- 63-CORE

FMVSS 302

NEMA

MIL-STD

RoHS

REACH

Roll Channel: Roll formed into a strong sturdy one-piece channel using 3000 series aluminum. Frame is tightly fitted to filter media and fastened with an aluminum rivet. The UL listing, model number and air flow direction are roll imprinted into the frame. Part number is metal stamped into frame for quick, accurate identification.

Window Pane: In addition to the standard roll formed frame design, more custom options are also available. The windowpane air filter design allows for a customized, aluminum “frame-n-pane” design that integrates the frame and a series of crossing, reinforcing intermediates that provide media support.

Frameless: Faravent EMI honeycomb is configurable to be used without a frame using fabric-over-foam EMI gasket material to maximize air flow and shielding effectiveness.

FaraVent™ Duo

Frequency	FaraVent Duo Shielding Effectiveness
100 MHz	71 dB
1 GHz	54 dB
10 GHz	43 dB
26 GZz	48 dB
40 GZz	48 dB

FaraVent™ Duo EMI vent panels are ideal for telecom, medical, power gen, military/defense, EV charging, and many other industrial and commercial products where EMI protection and air filtration is required in a single solution . The FaraVent Duo EMI vent panels are designed for electronics, telecom or datacom equipment where EMI/RFI interference could result in equipment malfunction. Air filters components are designed to be cleanable and reusable as needed. FaraVent ™ Duo EMI vent panels are custom designed for each application. Request a prototype for your application today.

Framed Filters +/-.06″ length & width, +/-.03″ thickness

Pad Filters +/-.12″ length & width, +/-.06″ thickness

Aluminum honeycomb is offered in a standard 0.125″ cell diameter with thicknesses of 0.125″, 0.25″, and 0.50″. Available in straight (90º) and 45º angled honeycomb configurations.

Model	Quadrafoam Media Thickness	Frame Thickness	Frame Face Flange Width (REF)
FF-3	.25	.30	.25 or .50
FF-5	.25 or .375	.43	.375
FF-5X	.375 or .50	.50	.25 or .50
FF-1025-B	.25	.88	.625
FF-1050-B	.50	.88	.625

Standards & Classifications

IEE 299.2006

UL 94 HF-1

UL 900

Telcordia NEBS GR- 63-CORE

FMVSS 302

NEMA

MIL-STD

RoHS

REACH

Frameless: Faravent EMI honeycomb is configurable to be used without a frame using fabric-over-foam EMI gasket material to maximize air flow and shielding effectiveness.

Quadrafoam™ and Quadrafoam II™ are open cell polyurethane foams specially coated to provide a UL 94 HF-1 flame safety rating, fungus resistance, and UV radiation resistance. They feature deep loading, high dust holding capacity and low air flow resistance for use in extremely wide climatic conditions.

Quadrafoam™ filter media is available in all frame models in various pore sizes (10 through 80 PPI Gray and Black).

Quadrafoam II™ filter media is available in all frame models in various pore sizes (10 through 45 PPI Gray and Black).

Quadrafoam

Quadrafoam Models: FF-2X, FF-3, FF-5, FF-5X, FF-1025-B
Size	Initial Resistance* (Pascals)	Average Synthetic Dust Weight Arrestance(%)
10 PPI	0.01 (2,49)	38
25 PPI	0.05 (12,44)	66
45 PPI	0.07 (17,41)	80
60 PPI	0.12 (29,84)	82
*inches water gauge Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity.

Quadrafoam Models: FF-5X, FF-1050B
Size	Initial Resistance* (Pascals)	Average Synthetic Dust Weight Arrestance(%)
10 PPI	0.03 (7,46)	63
25 PPI	0.08 (19,89)	83
45 PPI	0.16 (39,78)	91
60 PPI	0.25 (62,16)	91
*inches water gauge Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity.

Quadrafoam Models: FF-2X
Size	Initial Resistance* (Pascals)	Average Synthetic Dust Weight Arrestance(%)
45 PPI	0.04 (9,95)	65
80 PPI	0.12 (29,84)	81
*inches water gauge Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity.

Quadrafoam II

Quadrafoam II Models: FF-2X, FF-3, FF-5, FF-5X, FF-1025-B
Size	Initial Resistance* (Pascals)	Average Synthetic Dust Weight Arrestance(%)
10 PPI	0.01 (2,49)	38
30 PPI	0.05 (12,44)	66
45 PPI	0.07 (17,41)	80
*in inches water gauge Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity.

Quadrafoam II Models: FF-5X, FF-1050B
Size	Initial Resistance* (Pascals)	Average Synthetic Dust Weight Arrestance(%)
10 PPI	0.03 (7,46)	63
30 PPI	0.09 (22,38)	83
45 PPI	0.16 (39,78)	91
*in inches water gauge Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity.

Quadrafoam II Models: FF-2X
Size	Initial Resistance* (Pascals)	Average Synthetic Dust Weight Arrestance(%)
45 PPI	0.04 (9,95)	65
80 PPI	0.12 (29,84)	81
*in inches water gauge Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity.
