Polyester Air Filters | Universal Air Filter

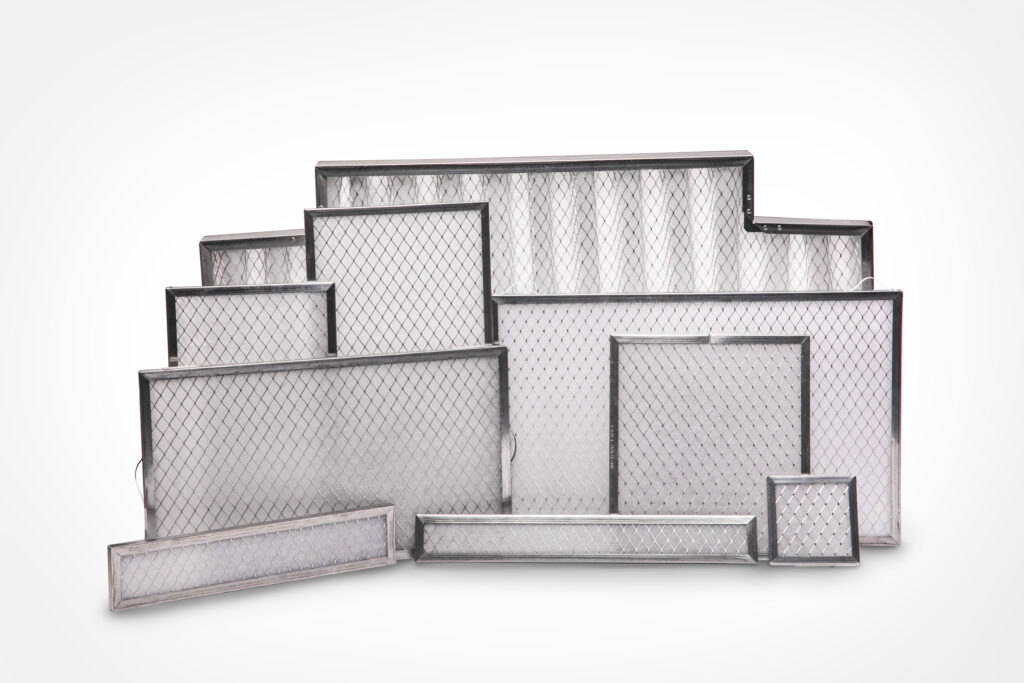

Polyester air filters are ideal for telecom, medical, power gen, and many other industrial and commercial products.  Polyester air filters perform with a high degree of dust arrestance when installed in electronics, computer and HVAC equipment where disposable filters are most appropriate. Polyester air filters have been specially designed for equipment where space is limited.

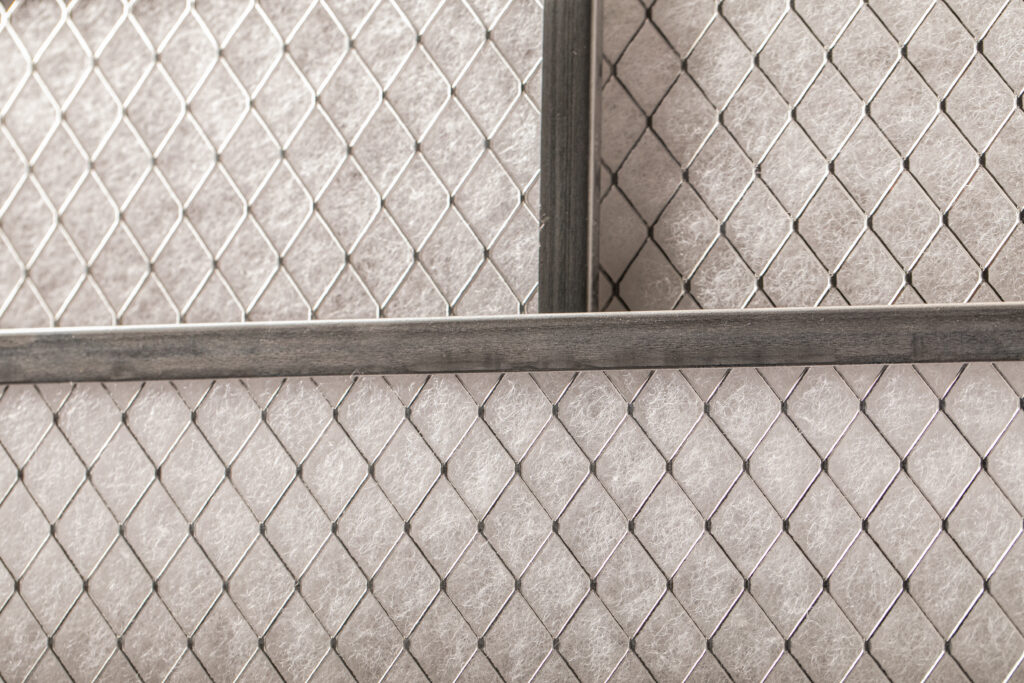

Expanded on our specially designed Uni-Grid equipment, using .040″ thick, 3000 series aluminum. Uni-Grid expanded aluminum is approximately 85% open to lower resistance. Polyester filters use Uni-Grid support on both sides.

Framed Filters: +/-.06″ length & width, +/-.03″ thickness.

Pad Filters: +/- 2% length & width, (REF) thickness.

Polyester media is a non-woven, non-migrating, synthetic material with ASHRAE dust arrestance to 90%. Advanced technology manufacturing equipment is used to produce a media of high quality, uniformity and excellent filtering performance. Polyester media is flame retardant and listed UL 94 HF-1, and UL 900 Class 2. Polyester media is sandwiched between two Uni-Grid supports, making it inseparable after assembly.

Polyester media is available in all frame models in various thickness configurations UFM-50 (0.50″) and UFM-100 (1.0″).

Model	Media Thickness	Frame Thickness	3D CAD Model
PE-3	.50	.30	Create & Download
PE-5	.50	.43	Create & Download
PE-5X	.50 or 1.00	.50	Create & Download
PE-1050-B	.50 or 1.00	.88	Create & Download

UL 900

UL 94 HF-1

Telcordia NEBS GR-63-CORE

NEMA

IP

RoHS

REACH

Roll formed into a strong sturdy one-piece channel, using 3000 series aluminum. Frame is tightly fitted to filter media and fastened with an aluminum rivet. The UL listing, model number and air flow direction are roll imprinted into the frame. Part number is metal stamped into frame for quick, accurate identification.

Model	Polyester Media Thickness	Frame Thickness
PE-3	.50	.30
PE-5	.50	.43
PE-5X	.50 or 1.00	.50
PE-1050-B	.50 or 1.00	.88
