Framed Filters +/- 0.06″ length & width, +/- 0.03″ thickness
Media Color: Black
Media Material: Polypropylene
Open area: 40%
Classification: UL 900
Temperature Rating: Operating 180F, Melting 325F
Media Thickness: 70 mil
Yarn Diameter: 12 mil

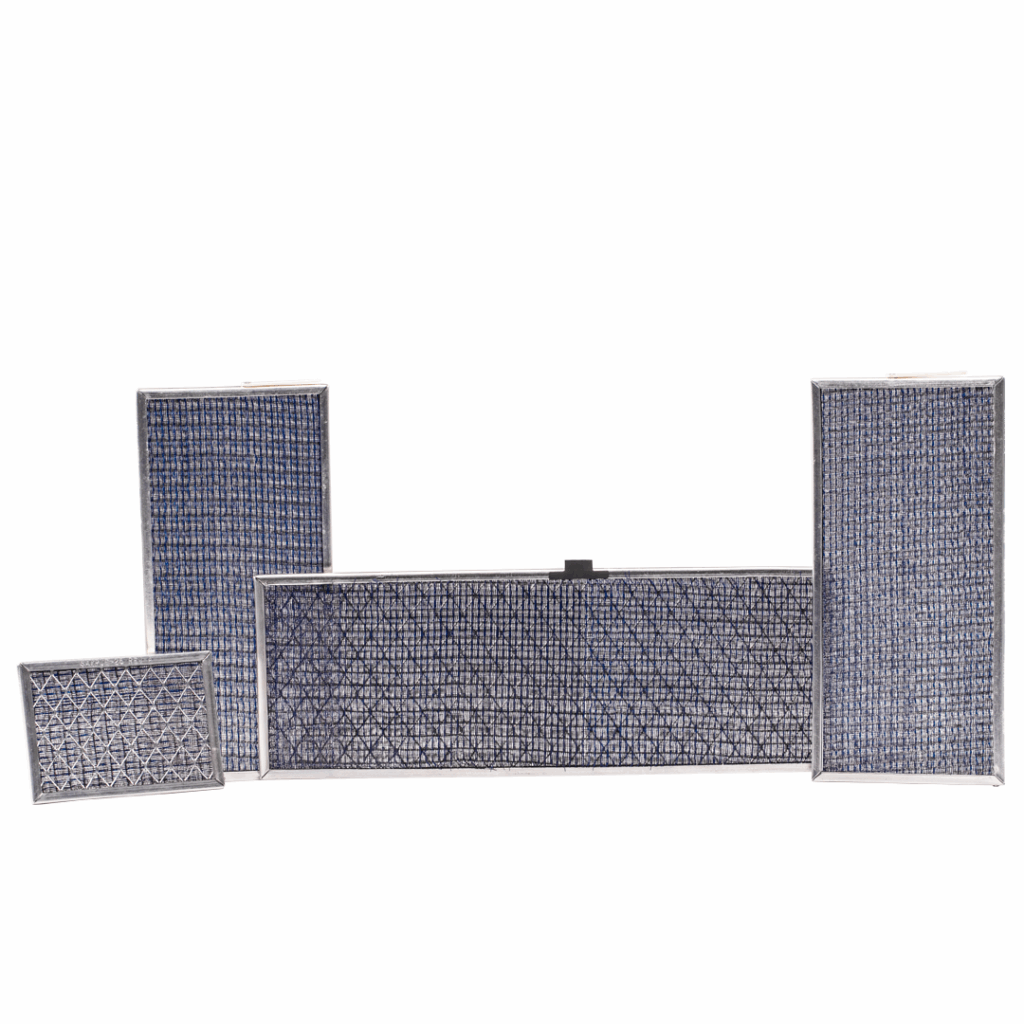

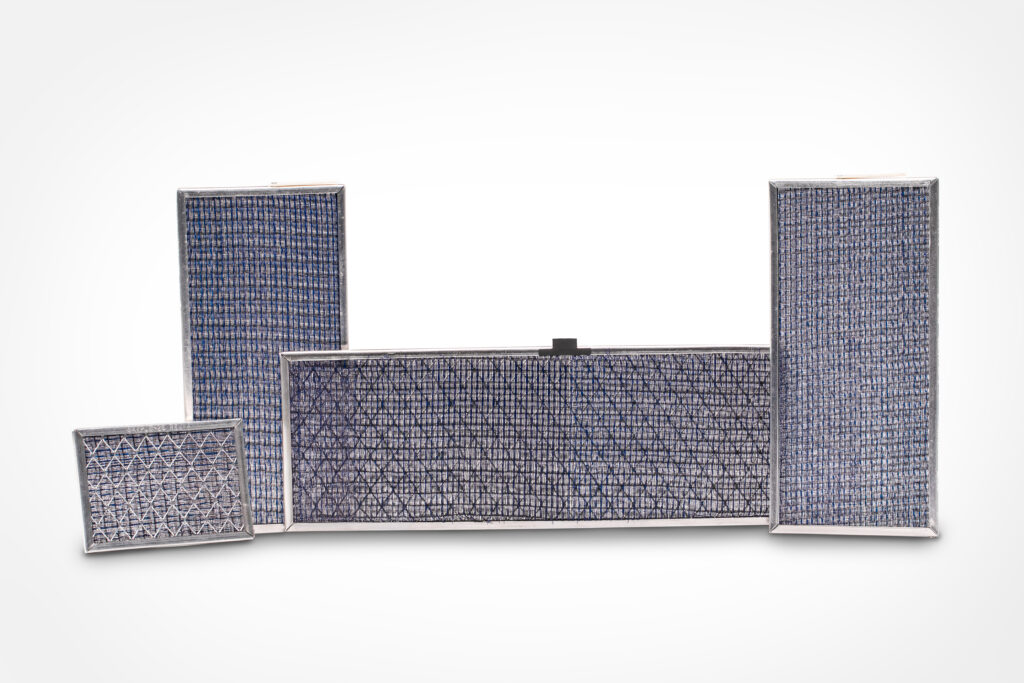

Honeycomb Weave Polypropylene media – Black honeycomb mesh in single or multiple layers
Corrugated Polypropylene Mesh – Manufactured from polypropylene and polyethylene yarn, this media is inert, nonabsorbent, and lightweight. Polypropylene Mesh Media is a washable and highly durable media with low pressure drop.
Roll formed into a strong sturdy one-piece channel. The media is fit within several frame sizes using thick 3000 series aluminum.
Frame is tightly fitted to filter media and fastened with an aluminum rivet. The UL listing, model number and air flow direction are roll imprinted into the frame. Part number is metal stamped into frame for quick, accurate identification.
In addition to the standard roll formed frame design, more custom options with custom thickness are also available.
The Windowpane filter design allows for a customized, aluminum ”frame-n-pane” design that integrates the frame and a series of crossing, reinforcing intermediates that provide media support. Windowpane filters also come in a hem-bend design for overall thickness of .12″

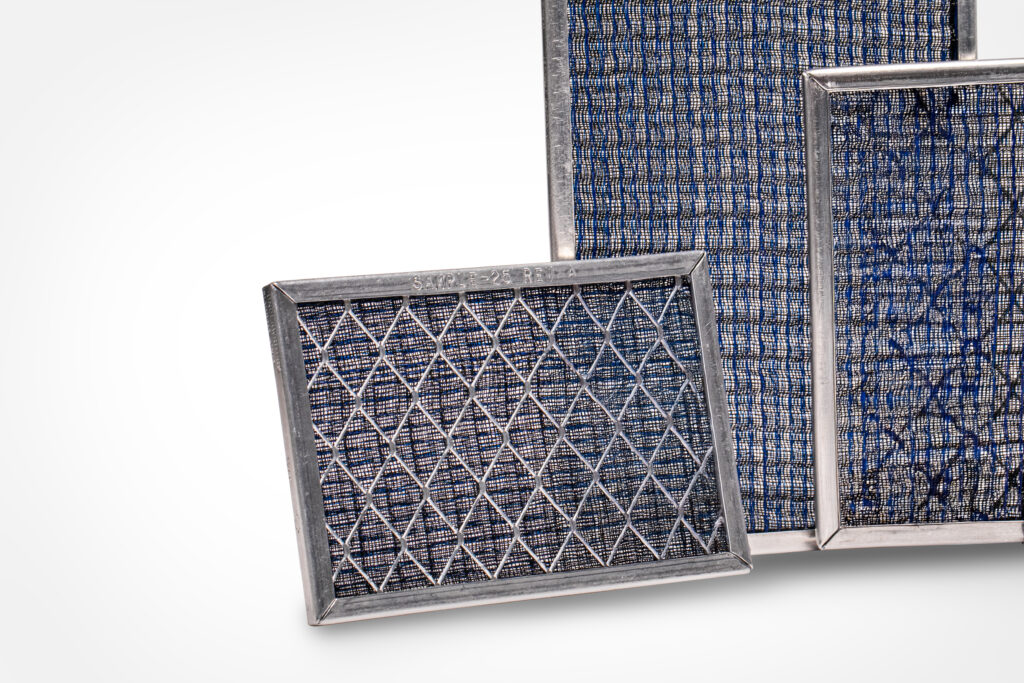

Expanded on our specially designed Uni-Grid equipment using 3000 series aluminum. Uni-Grid expanded aluminum supports media and is approximately 85% open to maximize air flow.
