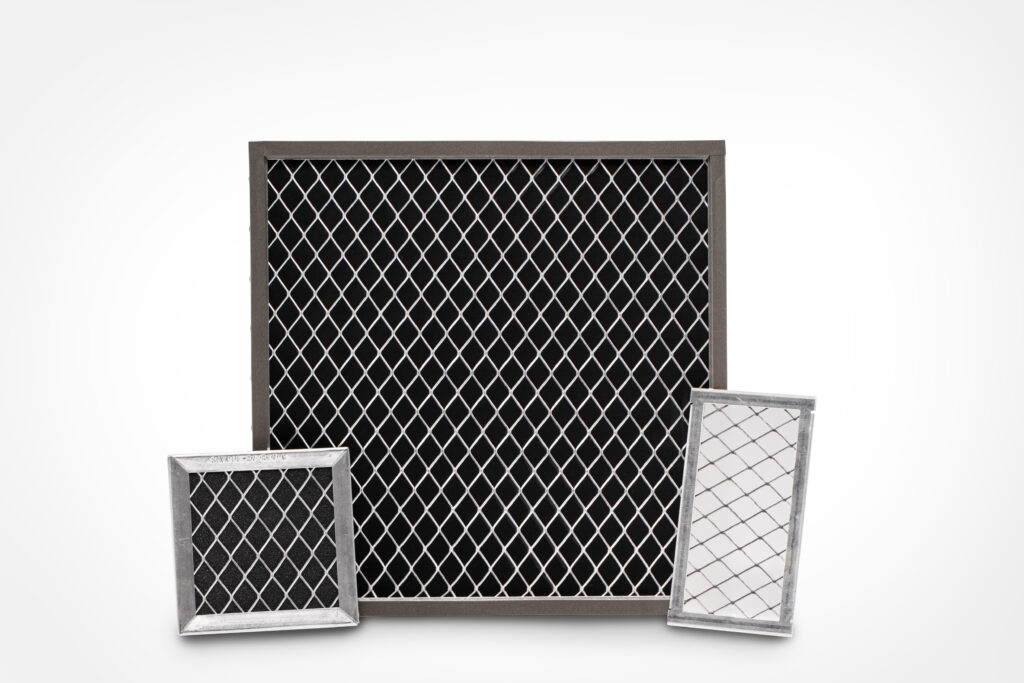

Hydrophobic Mesh air filters are configured as made-to-size aluminum-framed, reusable, and cleanable filters for fresh air intake or exhaust. These air filters are specially designed for harsh environments to reduce water and dust ingress. Hydrophobic Mesh media is ideal for outdoor or indoor enclosures in any industry, such as, telecom, datacom, power gen, LED signage, EV charging stations, medical, laboratory, military/defense, and many other industrial applications.
Framed Filters +/- 0.06″ length & width, +/- 0.03″ thickness
Fiber: PES+PTFE
Weave Pattern: Plain
Yarn Type – Warp: Monofilament
Yarn Type – Weft: Monofilament
Threads – Warp (inch): 125
Threads – Weft (inch): 125
Weight (oz/yd2): 2.1
Air Permeability (CFM): N/A
Opening (Micron): 125
Open Area (%): 38
Color: Black
Initial Resistance Curve: Attached
Media Color: Black
Media Material: Monofilament
PES+PTFE monofilament fiber.
Roll formed into a strong sturdy one-piece channel. The media is fit within several frame sizes using thick 3000 series aluminum.
Frame is tightly fitted to filter media and fastened with an aluminum rivet. The UL listing, model number and air flow direction are imprinted into the frame. Part number is metal stamped into frame for quick, accurate identification.
In addition to the standard roll formed frame design, more custom options with custom thickness are also available.

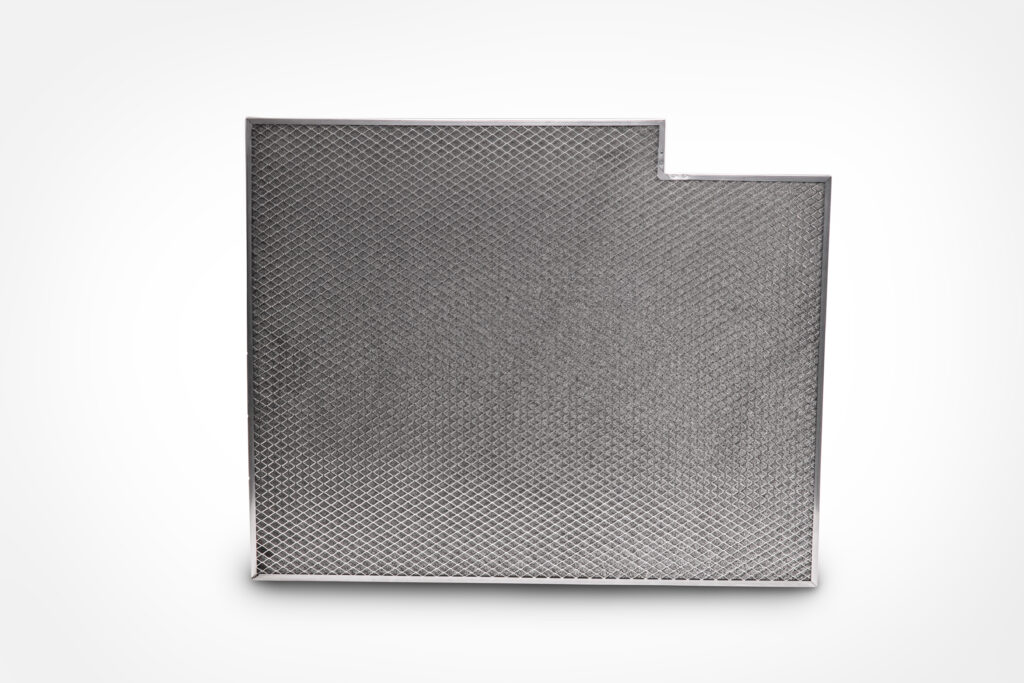

The Windowpane filter design allows for a customized, aluminum ”frame-n-pane” design that integrates the frame and a series of crossing, reinforcing intermediates that provide media support. Windowpane filters also come in a hem-bend design for overall thickness of 0.12″
Expanded on our specially designed Uni-Grid equipment, using .040″ thick, 3000 series aluminum. Uni-Grid expanded aluminum is approximately 85% open to maximize air flow.
